Transfer press / mechanical - 10 000 - 35 000 kN | TWIN SERVO

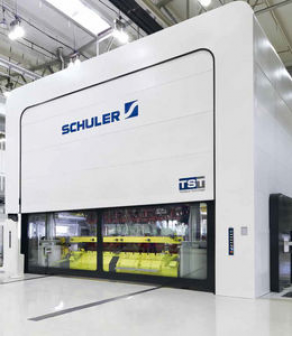

Schuler has set new standards in servo technology with its latest TwinServo technology and brought radical changes to the press world. The first transfer press developed by the Schulers Forming Center in Erfurt, featuring TwinServo technology, can handle 16,000 kN and is completely automated using Schuler-designed parts.Two separate torque motors are included in the press bed, with each having a capacity of 503 kilowatts. The unique arrangement of the two decentralized drives ensures there's adequate room for the drawing cushions and scrap chutes. The press enables electronic synchronization of the drives.
The TwinServo Technology is suitable for transfer and ProgDie presses with capacities in the range of 10,000 to 35,000 kN.
The press offers bed length between 5m and 8m and width in the range of 2.2m and 3m. When compared to traditional models, TwinServo presses have a much lower height of approximate 6m. Also they require 30% less space.
