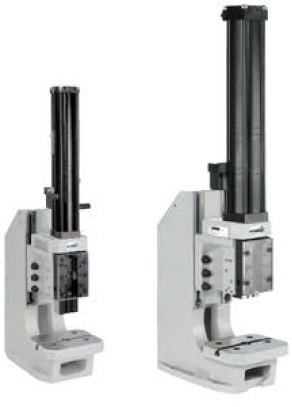

Punch press / hydropneumatic / C-frame
From 15 kN to 220 kNThroat depth from 131 mm to 185 mm
Working stroke from 100 mm to 600 mm
Features:
* The C-Frame design offers full accessibility when manually inserting and removing parts.
* Easy adaptation to different tool and part heights because of simplistic height adjustment with angular gear.
* Anti-rotational square ram with fully adjustable, Teflon lined gibs for precise travel. No die set required.
* High precision due to long precise guides of the square ram.
* The welded press frame offers highest stability.
* Space-saving and compact due to separate working cylinder for press No. 68
* fixture mounting platen (for press No. 64) with 3 T-slots and precisionmachined bore for tool location.
Applications:
* Assembling, riveting, bordering, crimping, embossing, numbering, deforming, stamping, dismantling
* Deformation over short paths
