Primary switchgear / hybrid - 31.5 - 40 kA, 72.5 - 100 kV | PASS M00

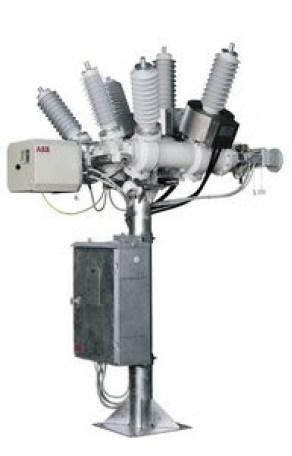

ABB PASS M00 is the hybrid switchgear module up to 100 kV voltage level and breaking current up to 31.5 kA. Utilizing and expanding on the operating principles of PASS M0 (145-170 kV) series, which has been a huge success with more than 800 bays sold globally in only 3 years. With PASS M00, all the functions of a bay are connected in a single module with the operating and interrupting functions integrated within a single SF6 housing. Easy-to-install and fully transportable, PASS M00 is highly reliable due to SF6 technology and exceptionally dynamic when drafting substation layouts/planning solutions. PASS M00 features a five positions disconnector with mobile contacts integrated in the chamber itself.
PASS M00 is available in two configurations: Single Bus Bar (SBB) and Double Bus Bar (DBB).
