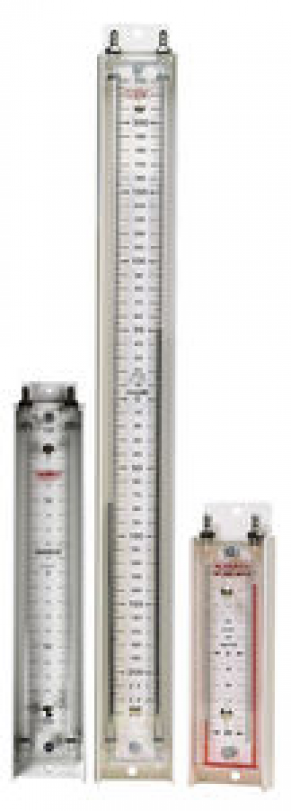

Liquid column pressure gauge - 870 mmCE, 620 mbar | LU series
Uses: Calculating differences in depression, pressure, or degree of differences in the pressure of gas or air in measuring ranges, which differ consistent with the kind of manometric fluid used : VOLT 1S, AWS 10, or MERCURY. Calculation range include: 220-0-220, 430-0-430, 870-0-870 VOLT.1S fluid d=1, 86 mmCE, 50-0-50, 100-0-100, 200-0-200, 400-0-400 AWS.10 fluid d=0, 87 mmCE, "U"- outlined feature for gauging successively negative and positive pressures, 310-0-310, 620-0-620 Hg fluid d=13, 545 mbar. Calculating by adding of readings read on each line, zero change by moving the glide band. For moveable use with the LU mock-up employing VOLT 1S fluid, for permanent use irrespective of the manometric fluid employed. Available with a white Polyvinyl Chloride support, two screws and rawlplugs, a bottle of liquid and two 487 connectors.
