Pulse generator - max. 400 MHz

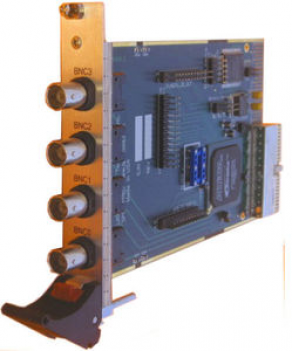

The PulseBlaster-cPCI, manufactured by Wuntronic, is a high-speed, programmable multi-channel pulse generator, designed in the CompactPCI form factor. This device offers up to 24 independently-controlled channels, and instructions words of up to 4096. It also has modifiable output rates, and powerful program flow characteristics.This pulse generator is capable of accommodating pulse programs with highly-flexible commands of up to 4,000 program words. These programs words feature loops (nested 8 level-deep), large loop counter (20 bits, up to 1,048,576 iterations), and deterministic WAIT op-codes, with user-programmable latency and high-retriggering frequency.
The typical applications of the PulseBlaster-cPCI involves experiments, process controls in electron, and nuclear and quadrupolar resonances (ESR,NRM,NQR). It is also applicable for mass spectrometry, ultra-sound, radar, medical imaging and other similar test technologies. The available designs of this product are PulseBlaster, PulseBlasterESR or PulseBlasterESR-PRO.
