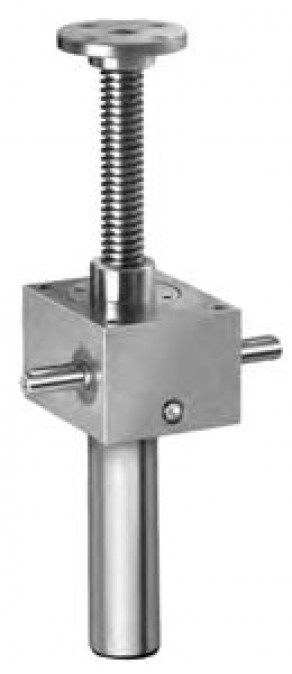

Worm gear screw jack / ball screw / translating screw / stainless steel - max. 50 000 N | NP/I series

Worm Gear Screw Jacks Type NP/I are available in three versions. Version A is the standard version which has a spindle that moves 1 mm in an axial direction. Version B has a groove that secures the spindle over its entire length. Version C has a spindle that is fixed to the worm gear. A protective sleeve is supplied with the first two versions.

The products are enclosed in an aluminum alloy housing and are machined on all sides and filled with lubricant. The worm is made from ETG100, while the gear made from Gbz12. The machine is self-locking to a certain extent. The spindle of the instruments is constructed out of material C15.

Left-hand, stainless steel, or ball screw versions can be made upon request.
