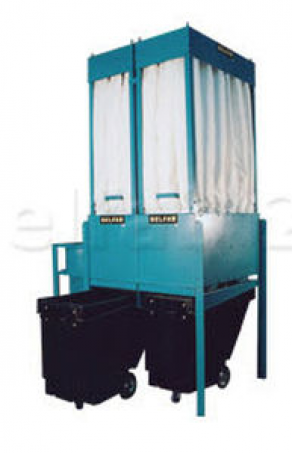

Bag dust collector / mechanical shaker cleaning / modular / for wood dust - 2 - 20 HP, 1 000 - 6 000 CFM | NBM-OP series
The BELFAB NBM-OP series is engineered as a compact and high efficiency collector solution, offering a height of less than 11'. This unit is designed to operate as either a dedicated "stand alone", or main dust collector within a woodworking facility.The NBM open system design integrates BELFAB modular filter technology. This feature makes it possible to increase filtration surface cost effectively, with the introduction of additional filter modules.
This expandable filter module capability makes it possible to offer large filtration surfaces, capable of developing an air to cloth ratio better than 6:1. This feature makes it ideal for dust collection application involving moderate to large dust volume in either coarse or fine material.
The BELFAB dust collector series comes with our patented upgradeable blower, that makes it possible to increase blower performance (on our standard blower) from a 2HP/1000CFM to a 20HP/ 6000CFM MAX by simply replacing motor and impeller within the same fan housing. Our optional HUMMER 1800 RPM fan offers super quiet operation at up to 6000 CFM (see note).
The NBM-OP series comes standard with our manual mechanical shaker. This unique vertical bag shaking system is engineered to offer optimum bag cleaning.
