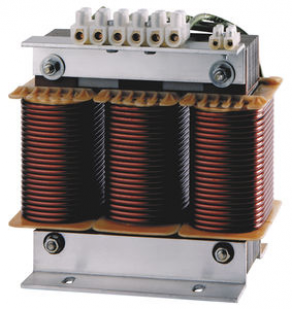

Three-phase harmonic filter reactor - R-RE-RBE series
The Circutor R-RE-RBE Series has standardized the reactors of the RE / RBE series, with a special design for use in static capacitor banks. For the optimum operation of the set, this requires the reactors to be connected within the triangle composed by the capacitor-reactor set. Asing the equivalent power rating, the RE / RBE reactors have a nominal current value that is 1.73 times smaller and an inductance value that is 3 times greater than that in an R / RB reactor. The company has a standard range of 400 V rejection reactors with p = 7 %, with a resonance frequency of 189 Hz for 50 Hz networks- or on demand 227 Hz for 60 Hz networks. Additionally the reactors can be manufactured on demand for static capacitor banks which have been adapted to any value of the power rating, p %, voltage and frequency. Robust and reliable, and designed with longevity in mind.
