Wire rope tension measuring device - ø 8 - 22 mm, 8 - 50 kN | SK-02 series

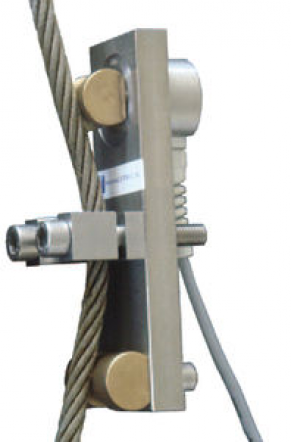

The Magtrol SK-02 Force Transducer is directly attached to a cable using a fastener with 2 screws. The wire is mildly curved above the two bronze backups with circular bearing surfaces. The force (P1) obtained by the support is measured using the torque sensor. It is directly proportional to the torque applied in the wire.
